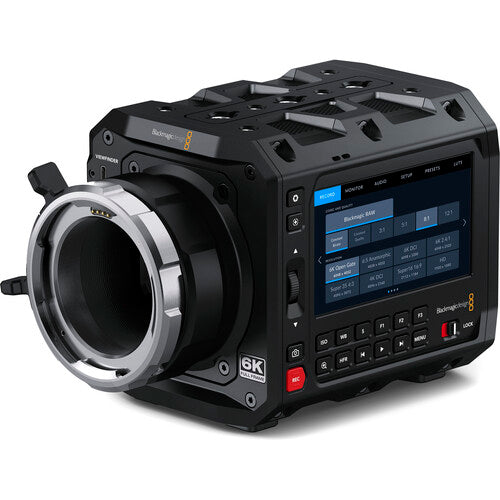

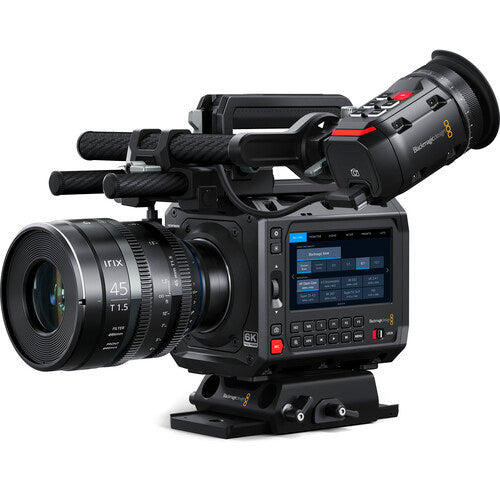

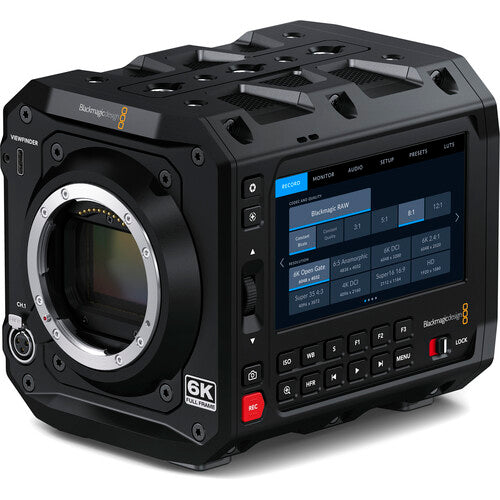

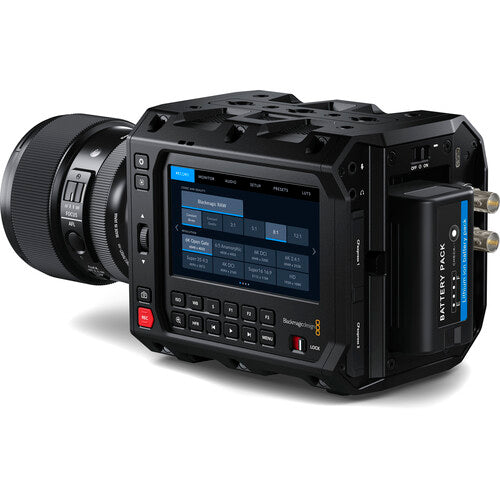

The Blackmagic Design PYXIS 6K Cinema Box Camera delivers professional-grade cinematography with a full-frame 6K sensor capturing exceptional colour fidelity across a 13-stop dynamic range.
Its lockable ARRI PL lens mount and customizable side plates provide filmmakers with flexible creative control. Record in Blackmagic RAW or H.265 proxy formats directly to cloud storage, or stream live to social platforms via Ethernet or 4G/5G connectivity. Shoot at 6K Open Gate 3:2 (36 fps) or 6K Anamorphic 6:5 (60 fps), with multiple resolution options for diverse production needs.
Key Features
- Full Frame 6K Sensor
- Up to 6K36 fps Open Gate / 6K Anamorphic
- 13-Stop Dynamic Range, Dual-Native ISO
- ARRI PL Lens Mount
- 4" HDR LCD Touchscreen
- Records Blackmagic RAW and H.264 Proxies
- Built-In Streaming via Ethernet or 4G/5G
- Switchable Side Plates, Mounting Threads
- Two CFexpress Card Slots, USB-C Port
- Ethernet and 12G-SDI Ports
Specifications
| Video I/O |
1x BNC (12G-SDI) Output |
| Audio I/O |
3.5mm Headphone Output, 3.5mm Stereo Input, 1x XLR 3-Pin Input |
| Other I/O |
2x USB-C, 1x BNC Reference/Timecode, 1x RJ45 10 Gigabit Ethernet |
| Wireless |
Bluetooth |
| Mounting |
2x 1/4in-20, 1x 3/8in-16, 4x M4 on Camera Body |
| Weight |
1.5kg (Body Only) |
What's in the Box
- Blackmagic Design PYXIS 6K Cinema Box Camera (ARRI PL)
- PYXIS Standard Mounting Plate
- PYXIS SSD Mounting Plate
- Lens Cap
- Power Supply with International Adapters (60W)
- DaVinci Resolve Studio Activation Key
- Limited 1-Year Manufacturer Warranty
Best For: ARRI PL lens owners needing a compact 6K box camera for cinema rigs, drones or multi-camera arrays.
