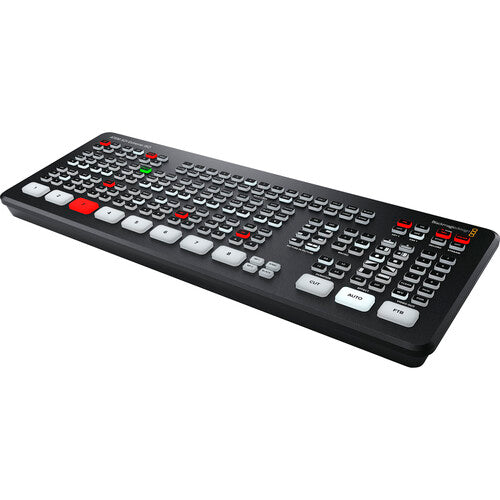

The Blackmagic ATEM SDI Extreme ISO is an 8-input SDI live production switcher combining advanced keying with full multi-stream ISO recording for broadcast-grade SDI productions.
Large SDI rigs need both headroom for creative keying and a safety net of every camera recorded separately. The SDI Extreme ISO handles 8x 3G-SDI inputs, each with its own standards converter, and supports up to 9 layers across 4 upstream and 2 downstream keyers, plus 4 chroma keyers for green screen work on any input. It records all 8 SDI ISO feeds plus the program output as 9 separate H.264 streams over USB-C, and automatically generates a DaVinci Resolve project file for a full post-production re-edit.
Key Features
- 8x 3G-SDI inputs with individual standards converters and re-sync
- Up to 9 layers — 4 upstream keyers, 2 downstream keyers, 4 chroma keyers
- ISO recording of 9 streams — 8 clean SDI feeds plus program — up to 70Mb/s H.264
- Automatic DaVinci Resolve project file generation
- USB-C 3.1 Gen 1 recording and streaming
- Fairlight audio mixer with EQ and dynamics
Specifications
| Inputs |
8x 3G-SDI |
| Keyers |
4 upstream, 2 downstream, 4 chroma |
| ISO Recording |
9 streams (8 clean feeds + program), H.264 up to 70Mb/s |
| Post-Production |
Automatic DaVinci Resolve project file |
| Streaming/Recording |
USB-C 3.1 Gen 1 |
| Audio |
Fairlight mixer, EQ/dynamics |
Best For: Broadcast-grade SDI productions needing advanced keying across 8 sources plus a full clean-feed ISO archive for post.
