Description:
Running live streams off a laptop means fighting dropped frames, software crashes and one more thing that can fail mid-broadcast. The Streaming Encoder 4K takes the computer out of the chain entirely. Plug a 12G-SDI source straight in, dial up a saved platform preset, and go live in H.264 over RTMP or H.265 over SRT, right up to 2160p60. Built-in Teranex standards conversion means whatever SDI or HD signal comes in gets converted cleanly to the format your platform needs, so there's no separate conversion box to carry. The SDI loop output lets a second encoder share the same source for redundant or multi-platform streaming, and the 2.2 inch colour display with six buttons and a spin knob puts every setting within reach at the front panel, no laptop required to change a stream key on site.
Key Features:
- 12G-SDI input with loop output and Teranex standards conversion
- DCI 4K streaming up to 60fps
- H.264 streaming via RTMP, H.265 streaming via SRT

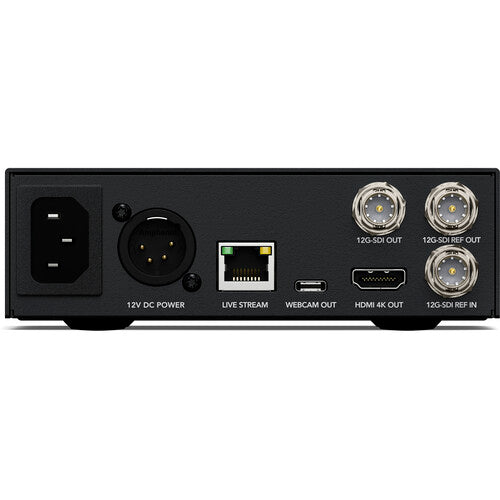

- SDI and HDMI monitor outputs for independent routing
- Ethernet 10/100/1000BASE-T for wired streaming and configuration
- USB-C for 5G/4G phone tethering or use as a USB webcam output

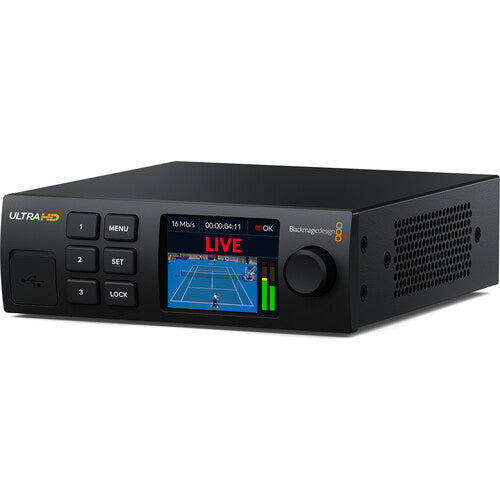

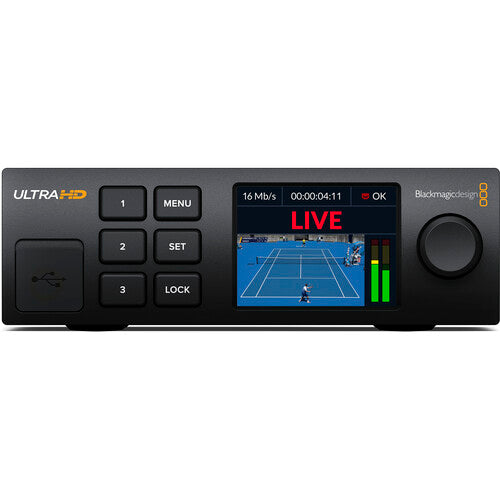

- Integrated 2.2 inch LCD with six front-panel buttons and spin knob control
- REST API over Ethernet for external and automated control
- CEA-608 and CEA-708 closed caption embedding on RTMP streams
- Source timecode passthrough over RTMP and SRT
- Direct presets for YouTube, Facebook, Twitch, X, Vimeo, Zoom, Teams and more
- Pairs with Blackmagic Streaming Decoder 4K for point-to-point links with tally and talkback
- Teranex Mini form factor, three units fit in a single rack space
- 100-240 VAC and 12 VDC power input options
Best For: Broadcast engineers, live event producers, churches and corporate AV teams who need a dependable, computer-free way to push a 12G-SDI source live in Ultra HD.
